Toro 22″ Rear Wheel Drive Transmission (6:1)

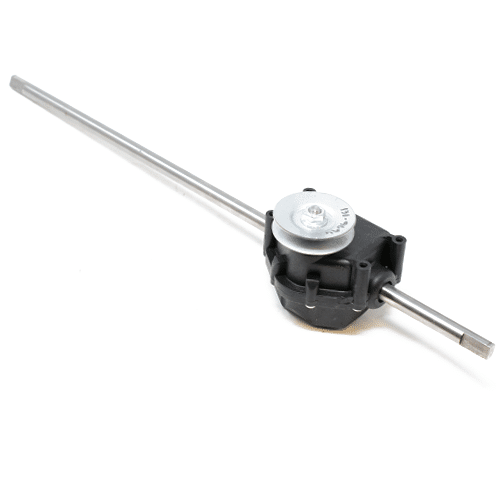

Genuine Toro Rear Wheel Drive Transmission Assembly (137-4825)
Replaces Former Part Number: 131-9696
Restore the self-propelled drive power to your walk-behind mower with this Genuine Toro factory replacement RWD transmission assembly. Featuring a 6:1 gear ratio, this factory assembly is engineered precisely for Toro's 22-inch (55cm) walk-behind platforms, including both gas-powered Recycler models with SmartStow and 60V MAX battery-powered Flex-Force configurations.
Installation Details & Hardware Notes:
- Authentic factory engineering ensures a direct, slide-on fit onto the rear axle.
- The transmission housing releases cleanly at the drive wheels via standard retaining rings.
- Note: Keep your original transmission bracket. The factory bracket transfers directly over onto the new housing using your existing Plastite mounting screws.
Pro Maintenance Tip: A failing transmission is often accelerated by stretched cables or worn drive belts. When installing a replacement transmission assembly, always take a moment to inspect the traction cable tension, the drive belt for cracking or glaze, and the condition of the internal gear teeth on the rear drive wheels. You can source matching replacement components below or in our You May Also Like section.
Equipment Compatibility
This factory RWD transmission assembly is designed exclusively for the following 22-inch (55cm) Toro Recycler configurations:
Toro Gas-Powered Recycler Series (with SmartStow)
- 20340 (22in Recycler Lawn Mower with SmartStow)
- 20355 (22in Recycler Lawn Mower with SmartStow)
- 20357 (22in Recycler Lawn Mower)
- 20961 (55cm Recycler Lawn Mower with SmartStow)
- 20965 (55cm Recycler Lawn Mower with SmartStow)
- 21765 (55cm Recycler Lawn Mower with SmartStow)
- 21768 (55cm Recycler Lawn Mower with SmartStow)
Toro Flex-Force 60V MAX Battery-Powered Series
- 20363 / 20363T (Flex-Force Power System 60V MAX 22in Recycler)
- 20366 / 20366T (Flex-Force Power System 60V MAX 22in Recycler)
- 21863 / 21863T (Flex-Force Power System 60V MAX 55cm Recycler)
| Weight | 6.0 lbs |
|---|---|
| Dimensions | 24 × 4 × 4 in |
