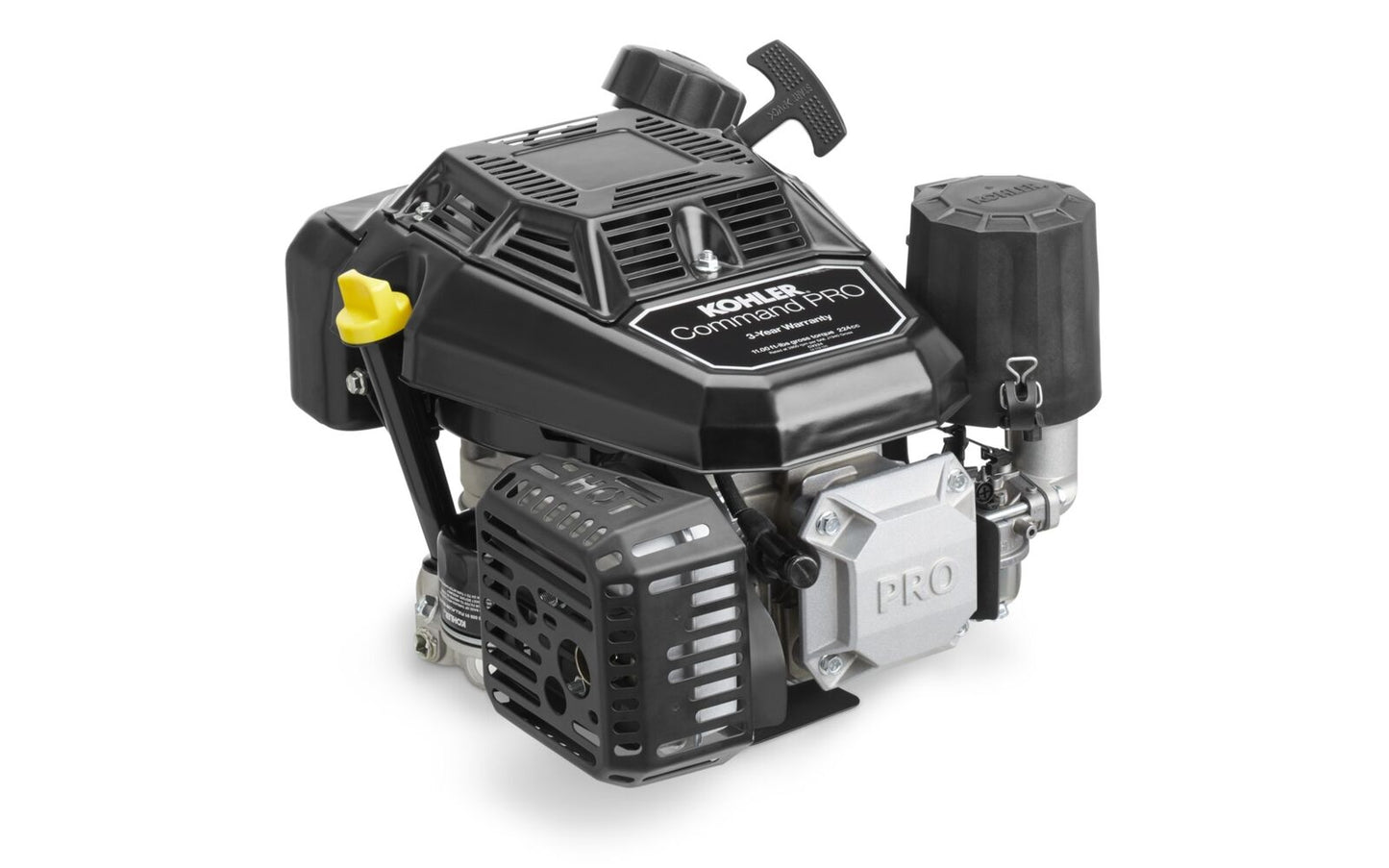

Specs
Model
CV224
Displacement
cm3 (in3)
224 (13.7)
Bore
mm (in)
73 (2.9)
Stroke in (mm)
mm (in)
53.5 (2.1)
Maximum Torque
Nm (lb-ft)
14.9 (11)@2600RPM
Dry Weight
kg (lbs)
16.8 (37)
Oil Capacity
L (US qt)
0.59 (0.625)
Engine Type
Commercial
Emission Compliance
CARB Phase III
China Phase II
EPA Phase III
EU Stage V
Compression Ratio
9.2:1
Lubrication
Dual - Full Pressure & Splash
Dimensions L x W x H
mm (in)
399x353x281 (15.7x13.9x11.1)
1 Performances measured according to ISO 14396 without final intake and exhaust line.Actual engine performances may be affected by accessories (intake and exhaust line, charging , cooling fan, etc.), application, ambient operating conditions (temperature, humidity and altitute) and other factors.
Features
- Torque output: 11.0 ft-lbs
- 3-year limited commercial warranty
- Enjoy effortless starts thanks to our Easy-Pull™ technology
- Easy pours and less spilling with Accu-Fill® fuel tank's 45% larger angled fuel neck
- Consistent-Cut™ technology maintains engine speed for a cleaner turf cut, even in tall, wet grass
- Cast-iron cylinder liners add durability and engine protection
Engine Uses
EQUIPMENT TYPES
This engine powers the following equipments
- Pressure Washer
- String Trimmer
- Tiller
- Walk-Behind Mowers
| Weight | 45.0 lbs |
|---|---|
| Dimensions | 17 × 14 × 12 in |
