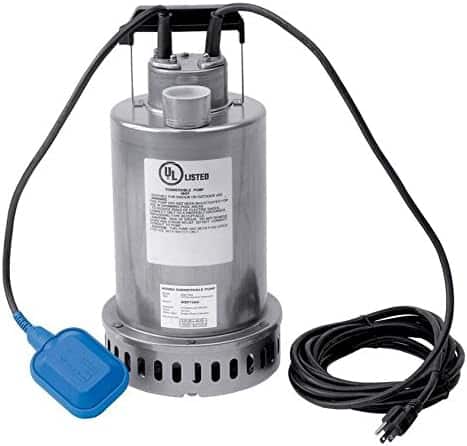

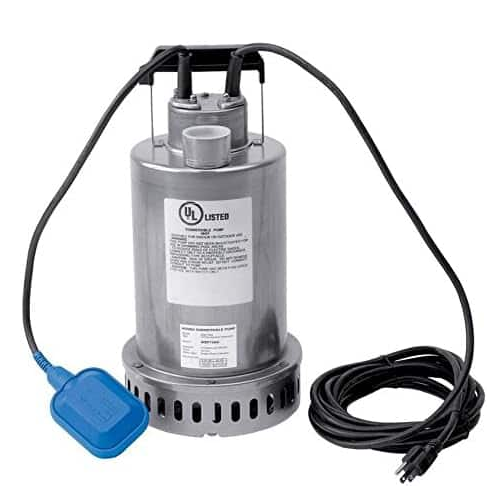

3/4 HP, 115V Submersible Pump
115 Volt operation allows the pump to be plugged into a standard outlet. (GFCI is recommended).
Features
Versatile Drainage
Ideal for draining basements, window wells, garden irrigation, decorative fountains, and more.
High Flow Capacity
74 gal./min. capacity handles large volumes of water quickly.
Continuous Duty Rated
Operates continuously in temperatures up to 104°F, and intermittently up to 140°F. Designed for 24/7 continuous operation.
Solids Handling
Handles solids up to 3/8" to move slurry and dirty liquids without damaging internal components.
Stainless Steel Casing
Industrial-grade 304 stainless steel prevents rust and corrosion, extending pump life.
Automatic Mechanical Switch
Uses a mechanical non-mercury float switch, eliminating hazardous materials.
Thermal Reset Protection
Automatically resets after cooling to protect the motor from periodic overheating.
50-Foot Heavy-Duty Cord
SOW/ASA U.L. listed long power cord for flexible placement.
Top Discharge Design
Ideal for applications where installation space is tight.
Flexible Submersion
Operates fully or partially submerged without water level concerns.
Shielded Ball Bearings
Top and bottom shielded bearings significantly increase pump longevity.
Air-Insulated Motor
Efficient motor design minimizes power draw and heat build-up.
Oil-Lubricated Double Seals
Tandem mechanical seals prevent shaft and motor damage if run dry.
Specifications
| Pump Type | Submersible Standard |
|---|---|
| Starting Type | Automatic |
| Casing | Stainless Steel |
| Motor (HP) | 3/4 HP |
| Voltage | 115V |
| Starting Amps | 48 A |
| Running Amps | 12.2 A |
| Duty | Continuous |
| Motor Insulation | Class F |
| Overhead Protection | Built-In Thermal Automatic Reset |
| Discharge Type | Top |
| Discharge Capacity | 74 GPM |
| Max. Head | 54 ft |
| Port Diameter | 1.5" FNPT |
| Maximum Pressure | 23 PSI |
| Solids Handling | 0.375" (3/8") |
| Impeller | Stainless Steel |
| Seals | Tandem Mechanical (Carbon/Ceramic upper, SIC/SIC lower) |
| Cord Length | 50 ft |
| Cord Type | Heavy-Duty 115V |
| Dimensions (W x H) | 8.3" x 17.2" |
| Pump Diameter | 8.3" |
| Dry Weight | 27 lbs. |
| Residential Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| CA Compliant | Yes |
Pump Performance
| Weight | 32.0 lbs |
|---|---|
| Dimensions | 12 × 11 × 19 in |
