Product Description
Features

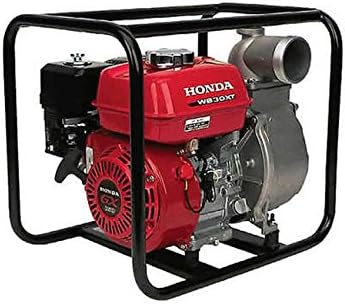

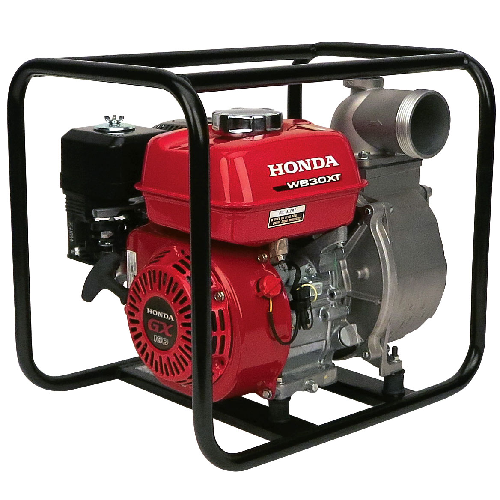

Easy starting Honda OHV commercial engineThe durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
Durable silicon carbide mechanical sealThe WB30 features abrasion-resistant silicone-carbide seals for extended wear.
4 vane high efficiency impellerThe WB20's exclusive, Honda-designed 4 vane impeller offers improved performance and high efficiency.
Cast iron voluteThe rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
Heavy duty full frame protectionProtects the pump, while offering a convenient tie down location for transport.
Isolation mounted engine and pumpHigh performance mounts minimize vibration, keeping the pump from “walking" away or “burying" itself in soft soil conditions. The reduced vibration also reduces wear on components, increasing the pump's durability.
Protected by Honda Oil Alert®Protects the pump by shutting the engine off when low oil is detected.
Large strainerThe strainer allows up to 8 mm (5/16 in.) solids to pass through, helping to prevent clogging.
Specifications
EngineGX160
Displacement163cc
Bore and stroke2.7" x 1.8"
Compression Ratio9.0:1
Oil AlertStd
Pump TypeCentrifugal, Self-priming
VoluteRigid Mounted Cast Iron
Impeller4 Vane Cast Iron
Mechanical Seal (Pump case / impeller)Silicon Carbide/Silicon Carbide
Priming time150 sec @16.4 ft.
Drive systemDirect
Discharge capacity290 gal/min
Suction port diameter3" NPT
Discharge port diameter3" NPT
Total head lift85 ft.
Suction head lift25 ft.
Maximum pressure37 psi
Solids handlingN/A
Dimensions (LxWxH)20.1"x 15.2" x 17.9"
Dry weight57 lb.
Fuel Capacity0.82 gal
Run Time @ Max Discharge1.9 hr
Strainer Part #78325-YG4-000
Residential Warranty24 months
Commercial Warranty12 months
Pump Performance
Weight and Dimensions
| Weight | 65.0 lbs |
|---|---|
| Dimensions | 22 × 16 × 19 in |
