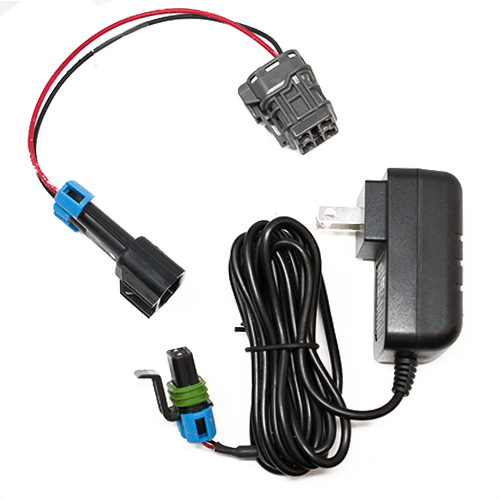

Honda Battery Float Charger Kit
Genuine Honda Float Charger Kit (06320-VH7-UA2)
This authentic Honda battery charger allows electric-start owners to maintain a full system charge without relying on the recoil starter. It supplements the on-board charging system and features an automatic "float mode," allowing you to leave it connected continuously between mows or during long-term winter storage. This maximizes battery life and ensures your mower is ready when you are.
There are no returns or refunds on electrical components. This charger replaces several older parts but is strictly compatible with the specific models and VIN ranges listed below. Please verify your mower's serial number on the deck frame before purchasing. See our return policy HERE.
Part Replacement History: Replaces former part numbers 06320-VH7-UA1, 31570-VH7-S31, 31570-VH7-S32, 31570-VH7-S31AH, and Harness Kit 06320-VH7-UA0.

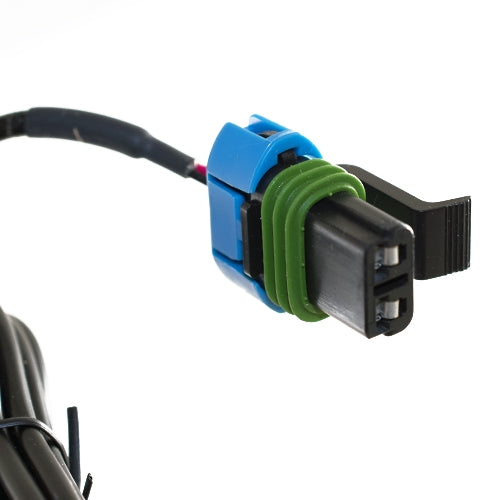

Note: Includes the updated wiring adapter that plugs directly into the existing wire harness at the battery box using a standard 120V outlet. (Earlier serial number units not listed below require a different harness kit to connect).
Product Compatibility & VIN Ranges
Locate your model and matching VIN tag on the rear of the mower deck to ensure a proper connection:
HRN216 Series
HRN216 VLA: VIN# MANA-1000001 to MANA-9999999
HRN216 VLAA: VIN# MANA-1000001 and up
HRR216 Series
HRR216 K9 VLAA: VIN# MZCG-8670001 to MZCG-9999999
HRR216 K9 VLAA/A: VIN# MZCG-1000001 to MZCG-1140000
HRR216 K10 VLAA: VIN# MZCG-1140001 to MZCG-1660000
HRR216 K11 VLAA: VIN# MZCG-1660001 to MZCG-1760000
HRX217 Series
HRX217 K4 HZAA / VLAA: VIN# MAGA-1900001 to MAGA-2369999
HRX217 K5 HZAA / VLAA: VIN# MAGA-2370001 to MAGA-9999999
HRX217 K6 HZA / VLA: VIN# MAMA-1000001 to MAMA-9999999
HRX217 K6 HZAA / VLAA: VIN# MAMA-1000001 and up
| Weight | 0.6 lbs |
|---|
