Briggs & Stratton Carburetor (84006242)
Briggs & Stratton Carburetor (84006242)
Regular price
$82.13 USD
Regular price
$89.51 USD
Sale price
$82.13 USD
Unit price
per
Shipping calculated at checkout.
In Stock
Couldn't load pickup availability
SKU:84006242
"In Stock"items ship out by next business day.
"Special orders"typically ship out 3-5 days from date of order. You will be contacted via email with longer delays.
Shop with confidence
-
4.8 Rating
-
Free Shipping
On all orders over $100
-
Genuine Parts
Designed to fit your model
Model Compatibility
Briggs & Stratton Carburetor

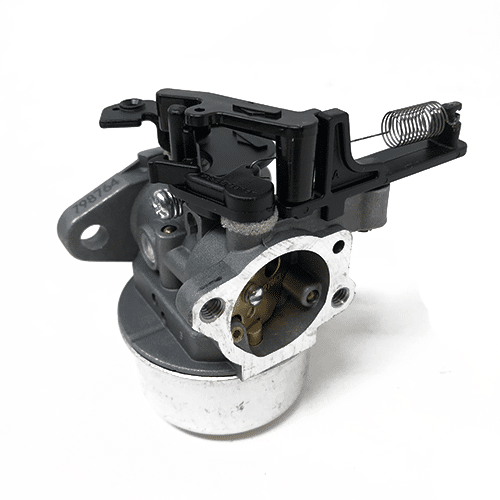

Genuine Briggs & Stratton Carburetor Assembly (84006242)
Replaces former part number 590944
Complete assembly makes replacement easier and assures proper installation
Fits specific engines including those on Toro TimeMaster models

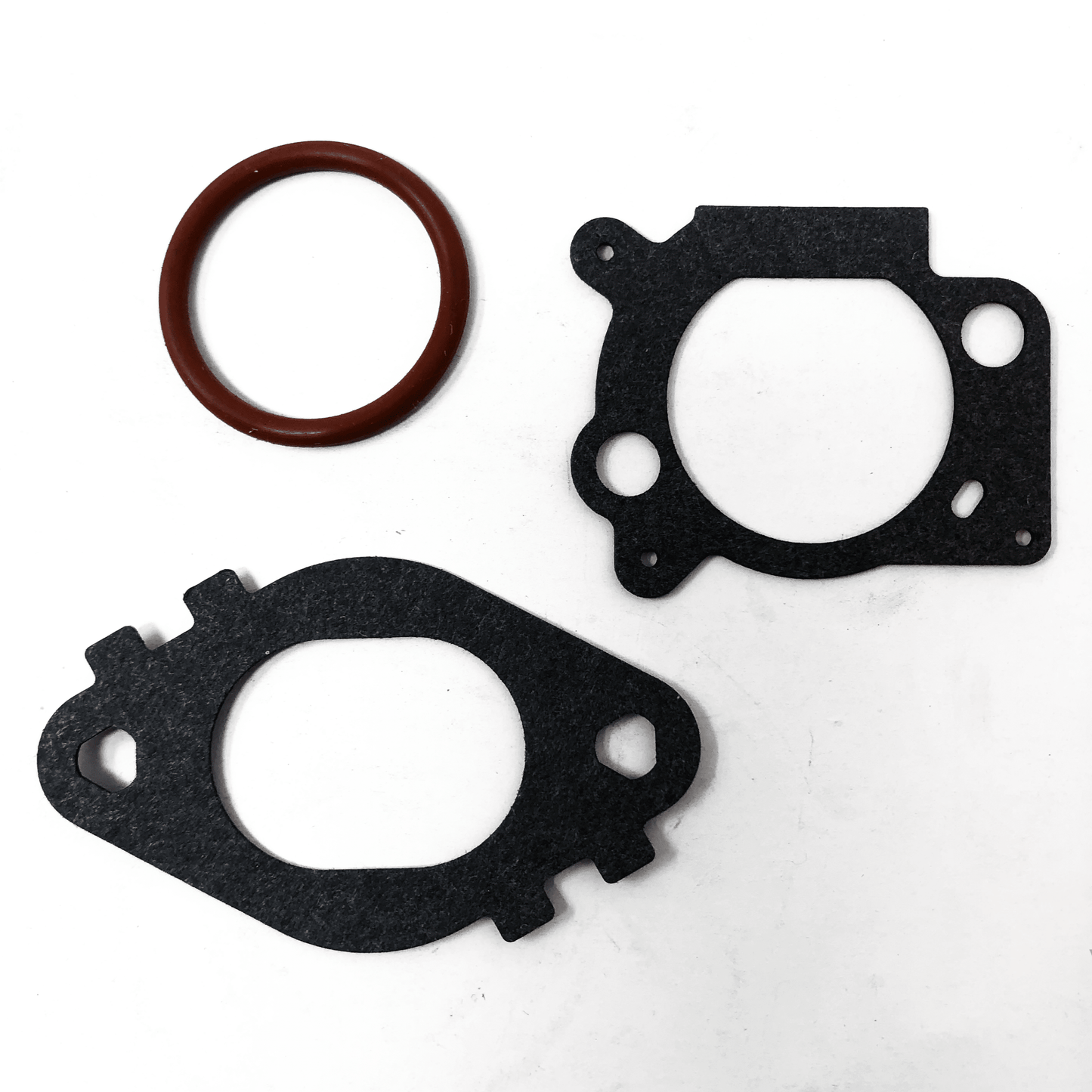

Includes
Intake Gasket 592129
Choke Return Spring 799179
Welch Plug 694468
Welch Plug 797633
O Ring Seal 793628
Throttle Valve 797630
Air Cleaner Gasket 691894
Need/Seat Kit 799177
Choke/Throttle Shaft Seal 707629
Carburetor Float 797626
Float Hinge Pin 797622
Float Bowl 797631
Float Bowl Gasket 797625
Sealing Wash 797632
Main Jet 799178
Sealing Washer 797632
Choke Return Spring 799179
Welch Plug 694468
Welch Plug 797633
O Ring Seal 793628
Throttle Valve 797630
Air Cleaner Gasket 691894
Need/Seat Kit 799177
Choke/Throttle Shaft Seal 707629
Carburetor Float 797626
Float Hinge Pin 797622
Float Bowl 797631
Float Bowl Gasket 797625
Sealing Wash 797632
Main Jet 799178
Sealing Washer 797632
Fits Toro models
2119930" TimeMaster Lawn Mower with Briggs & Stratton (Serial Numbers 400000000-999999999)
21199HD30" TimeMaster Lawn Mower with Briggs & Stratton (Serial Numbers 400000000-999999999)
2120030" TimeMaster Lawn Mower with Briggs & Stratton (Serial Numbers 400000000-999999999)
2120030" TimeMaster Lawn Mower with Briggs & Stratton (Serial Numbers 400000000-999999999)
Fits Briggs & Stratton Engines
14D932-0106-F1
14D932-0110-F1
14D932-0112-F1
14D932-0114-G1
14D932-0115-F1
14D932-0117-G1
14D932-0118-G1
14D935-0111-F1
14D935-0113-F1
14D937-0101-G1
14D937-0102-H1
14D937-0102-H5
14D937-0116-G1
14D942-0107-G1
Weight and Dimensions
| Weight | 0.8 lbs |
|---|
