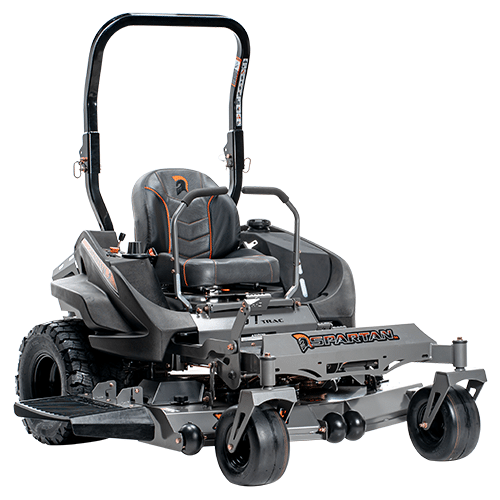

Spartan RZ HD
Spartan RZ HD model SZHD161730KR features 61" cutting deck; Kawasaki FR730 Engine; Parker HTE 10cc; and Rear Radial Tires.
Features
New look decks, seats and other finishes distinguish the latest RZ models
Enhanced and redesigned XTREME TURF FLOW (XTF) decks improve cut quality during spring, summer and fall conditions
EZ Debris Removal redesigned belt covers allow for easier blow out of accumulated debris around pulleys and spindles
7 gauge steel decks standard on all models
Parker HTE 10cc transmissions increases torque and response
SZHD161730KR Specifications
ENGINE
| Engine Name | Kawasaki FR730V |
| Horsepower | 24HP |
| Fuel Capacity | 9.5gal |
DRIVE LINE
| Hydraulic Drive | Parker HTE 10cc wheel motors. |
| Hydraulic Drive Torque | Continuous: 3,140in lb | Max Torque: 4,870in lb |
| Hydro Drive Maintenance | 1,000 hours between oil change |
| Drive Tires | 61" - 22x12-R10 Radial |
| Front Tires | 13x6.5-R6 Smooth Tread with Optional Radial Upgrade |
| Wheels Type | Steel |
| Speed (F/R) | Forward: Up to 9MPH | Reverse: Up to 5MPH |
FEATURES
| Seat | 360 Degree Floating Seat Platform |
| Steering Levers | Adjustable Up and Down |
| Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
| Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
| Ignition | Keyless, enter personal code to start |
| Auxiliary Power | 12 Volt outlet |
| Storage | Phone Holder, Cup Holder, and Deep Storage Tray |
| Hitch | N/A |
CUTTING DECK
| Deck Sizes | 61” |
| Deck Depth | 5” Deep, Full-floating deck |
| Deck Lift | Foot operated with shock assist |
| Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
| Cut Height | 1” to 4.25” with 15 cut heights in between |
| Blade Spindles | Cast aluminum, no maintenance/sealed double bearing |
| Parking Brake | Foot operated |
| Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
| Width | 61” Deck: 62.5” wide |
| Weight | 61” - 961lbs |
| Length | 84” |
| Height | 75" with ROPS Up - 54" with Folding ROPS Down |
WARRANTY
| Engine Warranty | 3 Years |
| Full Warranty | 3 Year / 400 Hour - 120 Day Belt Warranty |
| Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions |
| Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restricitons. |
| Control Panel Warranty | 3 Years |
Spartan’s Uncompromising features
Spartan’s RZ Series is equipped with the standard features that make Spartan stand out from the rest: 22″ Rear Radial Tires (RZ Pro, RZ HD), GT Trac for the best incline traction, the Vibration Control Deck System, easy touch brake system, ergonomic cockpit, foot assist easy-lift deck, uncomplicated design for easy add-ons and maintenance, and state-of-the-art push start instrument panel.
