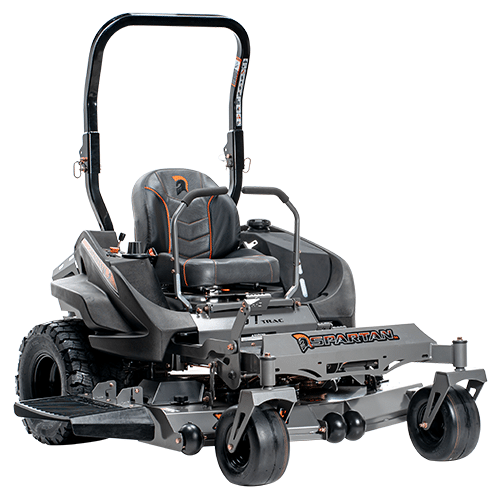

Spartan RZ HD
Spartan RZ HD model SZHD154691KR features 54 IN cutting deck; Kawasaki FR691 Engine; and Seat Upgrade. This model is patterned after the big guys with 5” deep 7 gauge XTF decks, ROPS, rear radials the Spartan signature styling. Everyone loves the looks and can't deny the performance.
Suspension Seat Upgrade
22” Rear Radial Drive Tires
9 mph Top Speed
Folding ROPS
9.5 gal Fuel Tank
18,500 FPM Blade Tip Speed
Enhanced and redesigned XTREME TURF FLOW (XTF) decks improve cut quality during spring, summer and fall conditions
EZ Debris Removal redesigned belt covers allow for easier blow out of accumulated debris around pulleys and spindles
7 gauge steel decks standard on all models
SZHD154691KR Specifications
ENGINE
| Engine Name | Kawasaki FR691V |
| Horsepower | 23HP |
| Fuel Capacity | 9.5gal |
DRIVE LINE
| Hydraulic Drive | Parker HTE 10cc Wheel Motors. |
| Hydraulic Drive Torque | Continuous - 3,140in-lb | Max Torque - 4,870in-lb |
| Hydro Drive Maintenance | 1,000 Hours Between Oil Change |
| Drive Tires | 54" - 22x12-R10 Radial | 48" - 22x10-R10 Radial |
| Front Tires | 13x6.5-R6 Smooth Tread with Optional Radial Upgrade |
| Wheels Type | Steel |
| Speed (F/R) | Forward - Up to 9mph | Reverse - Up to 5mph |
FEATURES
| Seat | 360 Degree Floating Seat Platform |
| Steering Levers | Adjustable Up and Down |
| Control Panel LCD Display | Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time between Oil Change Countdown - Fault Codes |
| Control Panel LED Warning Indicators | Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI |
| Ignition | Keyless, Enter Personal Code to Start |
| Auxiliary Power | 12v Outlet |
| Storage | Phone Holder, Cup Holder, and Deep Storage Tray |
| Hitch | N/A |
CUTTING DECK
| Deck Sizes | 54" |
| Deck Depth | 5" Deep, Full-Floating Deck |
| Deck Lift | Foot Operated with Shock Assist |
| Deck Adjustment | Change-On-The-Go Precision Deck Height Dial |
| Cut Height | 1” to 4.25” with 15 cut heights in between |
| Blade Spindles | Cast Aluminum, No Maintenance/Sealed Double Bearings |
| Parking Brake | Foot Operated |
| Frame | 1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
| Width | 54” Deck - 55.5” Wide |
| Weight | 54” - 941lbs |
| Length | 84" |
| Height | 75" with ROPS Up - 54" with Folding ROPS Down |
WARRANTY
| Engine Warranty | 3 Years |
| Full Warranty | 3 Year / 400 Hour - 120 Day Belt Warranty |
| Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
| Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restricitons. |
| Control Panel Warranty | 3 Years |
| Weight | 1500.0 lbs |
|---|
