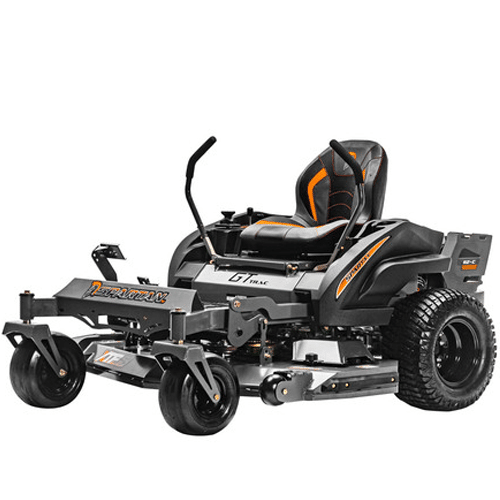

Spartan RZ-C
The RZ-C is our newest compact solution available in 42" and 54" deck size. Spartan uses the same fusion welded tube frame as Spartan's bigger zero turns, so the RZ-C has the same durability with a lower starting price and a footprint to fit comfortably between tight spaces and into your garage!
This homeowner model SZCZ154691KR features a powerful transmission and tough cutting deck for any property. Even at this great value, many of Spartan's key features are included on the RZ-C.
Spartan Key Features
Spartan has a lot of key advantages throughout their product line. Why take our word for it? Spartan has assembled their list of Spartan Advantages for the RZ-C:
HD FUSION WELDED FRAMES
7 GAUGE STEEL DECKS
All Spartan Mowers have a deck fabricated from 7 gauge steel, not just the top end models. Check out the competition and see the difference for yourself. No light duty decks here!
KEY PAD
Our key pad allows you to personalize your code to start the mower. It also has a push button switch for accessories like lights, electric chute, etc. The screen shows engine hours, PTO clutch hours, when to change your oil and light indicators for diagnostics. It’s your mower’s personal assistant!
TUFF-TORQ
Our RZ-C, RZ and RZ-Pro models with serviceable Tuff-Torq transmissions offer added power and reliability.
PARKING BRAKE PEDALS
Foot controlled on and off parking brake so both hands can be on control sticks. Another great feature that helps keep you in control. Test drive and see what you think for yourself.
MAUFACTURED IN USA
Did you know that we are manufactured in the USA? Made with American steel, engines, hydro drives, custom seats, control panel, idler, pulleys… the list goes on.
12V OUTLET
Not only a place for your phone, but a way to charge it or to power other 12V items. *RZ models – storage pocket not included
ENHANCED XTF DECK SYSTEM
Xtreme Turf Flow (XTF) decks have been redesigned and enhanced to meet the spring, summer, and fall mowing conditions everywhere. This enhanced deck system comes standard on ALL models 42″-72″.
ANTI-SLIP MAT
All models are equipped with a rubber anti-slip foot mat. These mats help reduce vibration from the transmission to the operator’s foot.
VIBRATION CONTROLLED DECK
Vibration controlled deck system with a one-piece idler pulley and shock absorber takes away belt whip and reduces vibration. The ‘soft start electronic control’ pulses electricity to the electric clutch at engagement to increase your clutch and belt life.
RESILIENT BUSHINGS
Special resilient bushings on the mower stabilizing arms reduce the shock and damage to the mower if it hits curbs, stumps, or other debris.
SZCZ154691KR Specifications
ENGINE
| Engine Name | Kawasaki FR-691 |
| Horsepower | 23HP |
| Fuel Capacity | 5gal |
DRIVE LINE
| Hydraulic Drive | Tuff Torq 300 Series |
| Hydraulic Drive Torque | |
| Hydro Drive Maintenance | 200 Hours Between Oil Changes (when used in severe duty) |
| Drive Tires | 54" - 20x10-R10 Turf Armor |
| Front Tires | 13x6.5-R6 Smooth Tread |
| Wheels Type | Steel |
| Speed (F/R) | Forward - Up to 7.5mph | Reverse - Up to 5mph |
FEATURES
| Seat | Stylish & Comfortable |
| Steering Levers | Adjustable Up and Down |
| Control Panel LCD Display | Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time between Oil Change Countdown - Fault Codes |
| Control Panel LED Warning Indicators | Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI |
| Ignition | Keyless, Enter Personal Code to Start |
| Auxiliary Power | 12v Outlet |
| Storage | Large Cup Holder & Storage Tray |
| Hitch | N/A |
CUTTING DECK
| Deck Sizes | 54" |
| Deck Depth | 4" Deep, Full-Floating Deck |
| Deck Lift | Foot Operated (54" comes with Shock Assist) |
| Deck Adjustment | Change-On-The-Go Precision Deck Height Dial |
| Cut Height | Quick Adjust Dial from 1" to 4.25" with 12 Cut Heights |
| Blade Spindles | Cast Aluminum, No Maintenance/Sealed Double Bearings |
| Parking Brake | Foot Operated |
| Frame | 1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
| Width | 54” Deck - 55.5” Wide |
| Weight | 54" - 757lbs |
| Length | 81” |
| Height | 44” |
WARRANTY
| Engine Warranty | 3 Years |
| Full Warranty | 3 Years or 300 Hours, 120 Day Belt Warranty |
| Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
| Hydraulic Drive Warranty | 3 Year / 200 Hour |
| Control Panel Warranty | 3 Years |
| Weight | 1500.0 lbs |
|---|
